Description

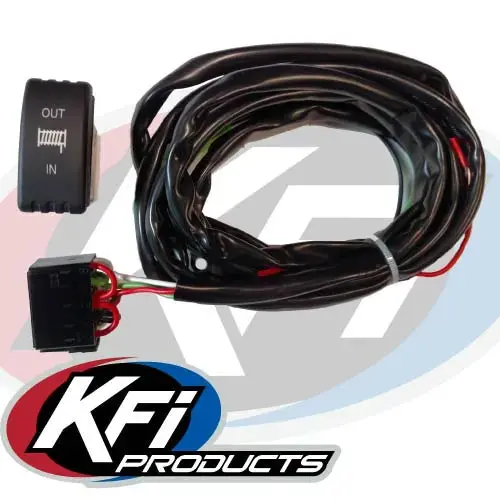

KFI UTV Dash Rocker Switch KIT
Kit Includes:
- Winch Rocker Switch
- Complete 10′ Wire Harness with Plug
Specifications:
- This kit includes the KFI Rocker Winch Switch and the 10′ Wire Harness with plug for easy wiring installation
- Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor
- Blue LED illuminated when your key is turned on to allow you to see at night
- Circuit Type (ON)-OFF-(ON)
- Double pole Switch. This mean two contact points instead of just one for better repeatability operation.
- Requires Mounting hole 0.830” x 1.450” (standard on most UTV’s)
- Works with Panel Thickness ranging from .030” to .250” thick
- Max Current Rating: 20A 12VDC and 15A 24VDC
- Silver Plated Terminals
- Requires Standard ATV Winch Contactor to control Winch

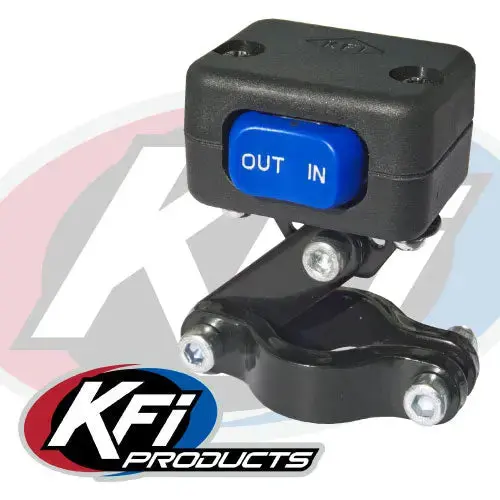

KFI Mini-Rocker Handlebar Switch
Kit Includes:
- ATV Handlebar Mini-Rocker Replacement Winch Switch
Specifications:
- Mounts to your handlebars with included mounting hardware
- Can be surface mounted for use on UTV’s and Side X Sides
- Requires standard ATV winch contactor to control winch
- Wires are 10′ long
- See below wiring schematic
