Description

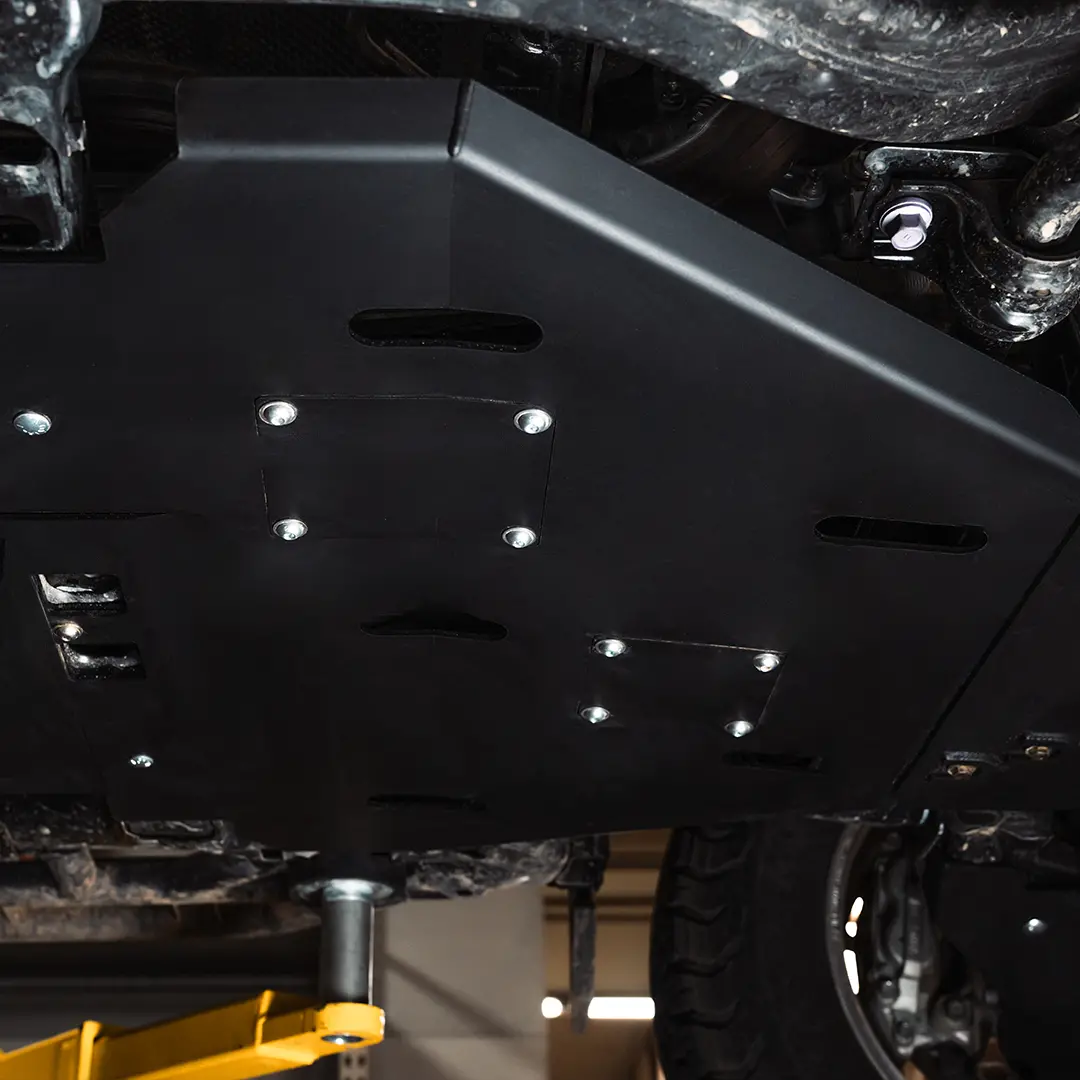

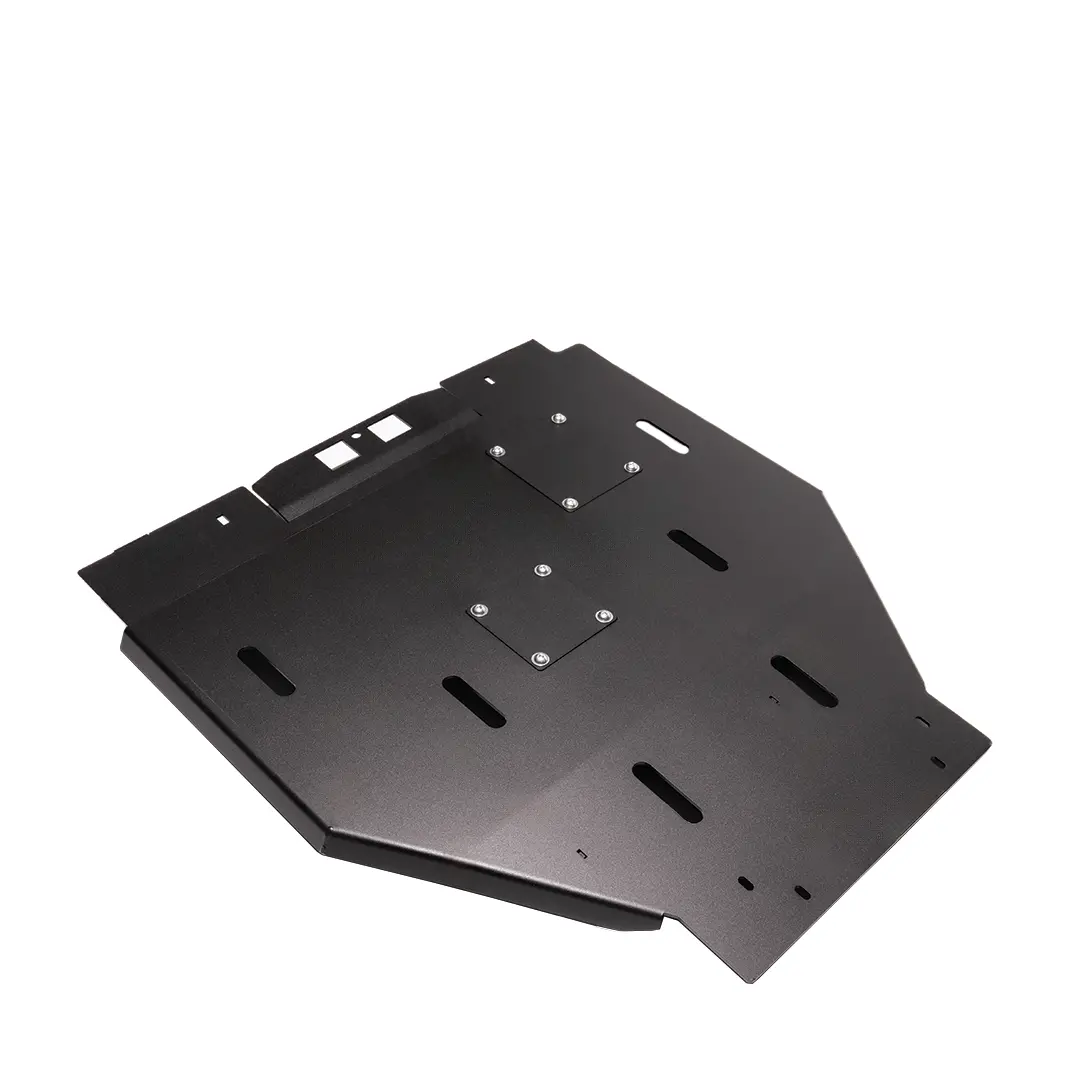

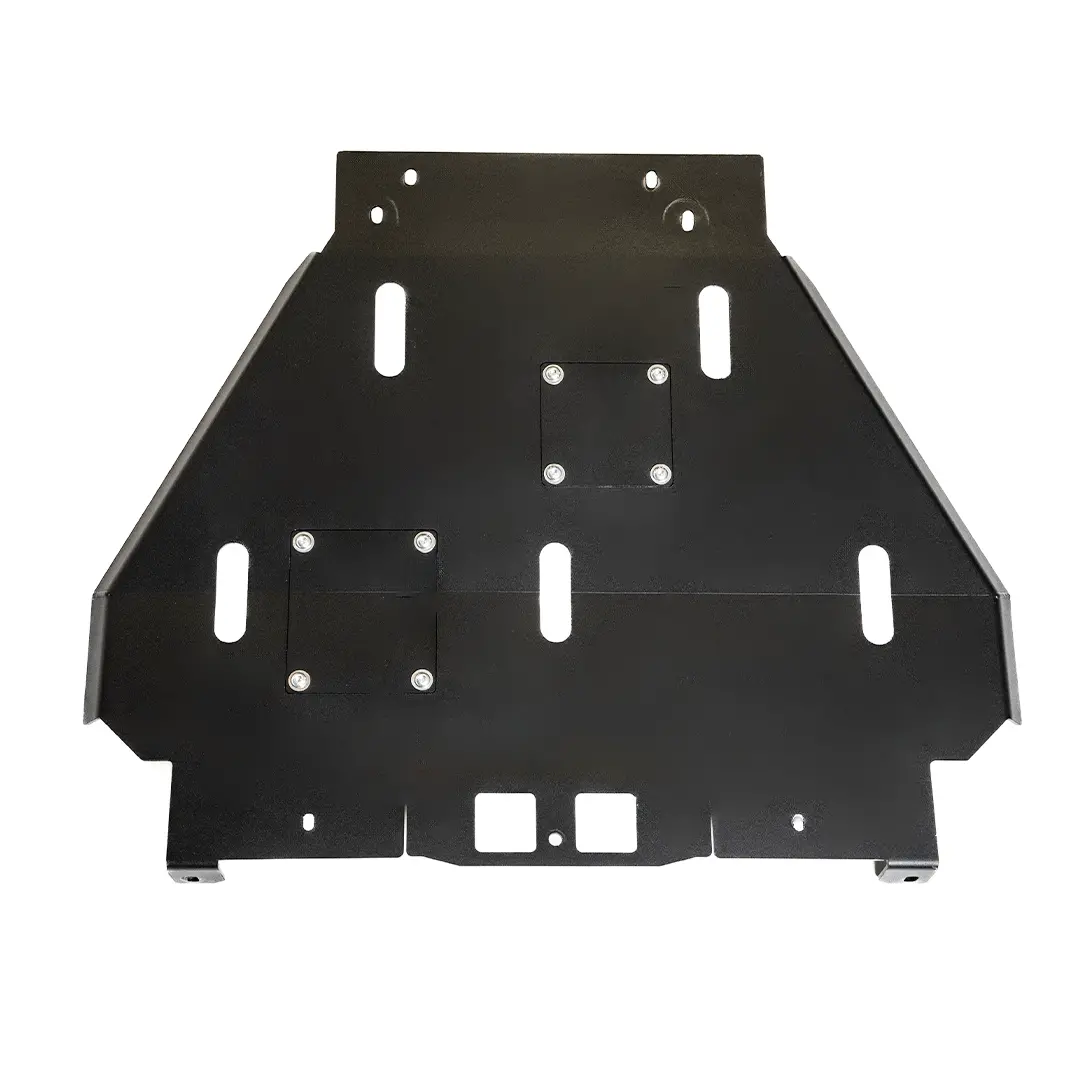

Cali Raised LED Transmission & Cat Shield Skid Plate for 2024+ Toyota Tacoma — Dual-Purpose Underbody Protection
The 4th Generation Toyota Tacoma is a significant investment, making it a target for both trail damage and urban theft. The Cali Raised LED Transmission and Catalytic Converter Shield Skid Plate provides a dual-layer defense system for your truck. While the transmission is vulnerable to jagged rocks and stumps on the trail, the catalytic converters are frequent targets for thieves due to their easy accessibility. This skid plate is laser-cut from 3/16″ American steel or 1/4″ 5052 aluminum to provide edge-to-edge coverage that protects your drivetrain while acting as a formidable deterrent against quick-access theft.
Proudly made in the USA, this armor is CAD-designed specifically for the 2024 Tacoma’s redesigned chassis. It bridges the gap between the front skid plate and the transfer case, creating a seamless “belly pan” that reduces drag and prevents “hang-ups” on technical obstacles. Whether you are navigating a narrow rock garden or parking in a high-traffic area, this skid plate offers the peace of mind that your Tacoma is fortified from every angle.
Advanced Security Features
Security is baked into the design of this skid plate. Cali Raised LED utilizes proprietary bolt-protector rings around the mounting hardware. These rings serve a dual purpose: they protect bolt heads from being “sheared off” by rocks on the trail, and they make it significantly more difficult for thieves to remove the plate with standard tools. The precision fitment leaves no room for saws or cutting tools to reach the catalytic converters, providing a physical barrier that is both strong and strategically ventilated.
Material Choice: Steel vs. Aluminum
Tailor your Tacoma’s defense to your specific environment with two specialized material options:
- 3/16″ American Steel: The industry standard for high-intensity rock crawling and maximum security. It offers the highest level of impact resistance and is significantly harder for a thief to cut through. Available Raw or in a durable Black Powder Coat.
- 1/4″ 5052 Aluminum: The ideal choice for overlanders and daily drivers. It provides substantial protection while reducing overall weight by approximately 40%. It is naturally corrosion-resistant, making it perfect for humid climates or winter roads.
Zero-Drill, Professional Integration
Installation is 100% bolt-on, utilizing the factory mounting points on the 2024 Tacoma frame. There is zero drilling, welding, or permanent modification required, ensuring your factory warranty remains intact. The skid plate features CNC-cut ventilation ports that ensure optimal airflow to the transmission, preventing heat soak during slow-speed technical climbs or heavy towing. It integrates perfectly with the Cali Raised LED Front and Transfer Case skids for total underbody security.
Specifications
| Vehicle Fitment | 2024+ Toyota Tacoma (i-FORCE and i-FORCE MAX) |
| Material Options | 3/16″ Steel or 1/4″ 5052 Aluminum |
| Theft Protection | Integrated Catalytic Converter Security |

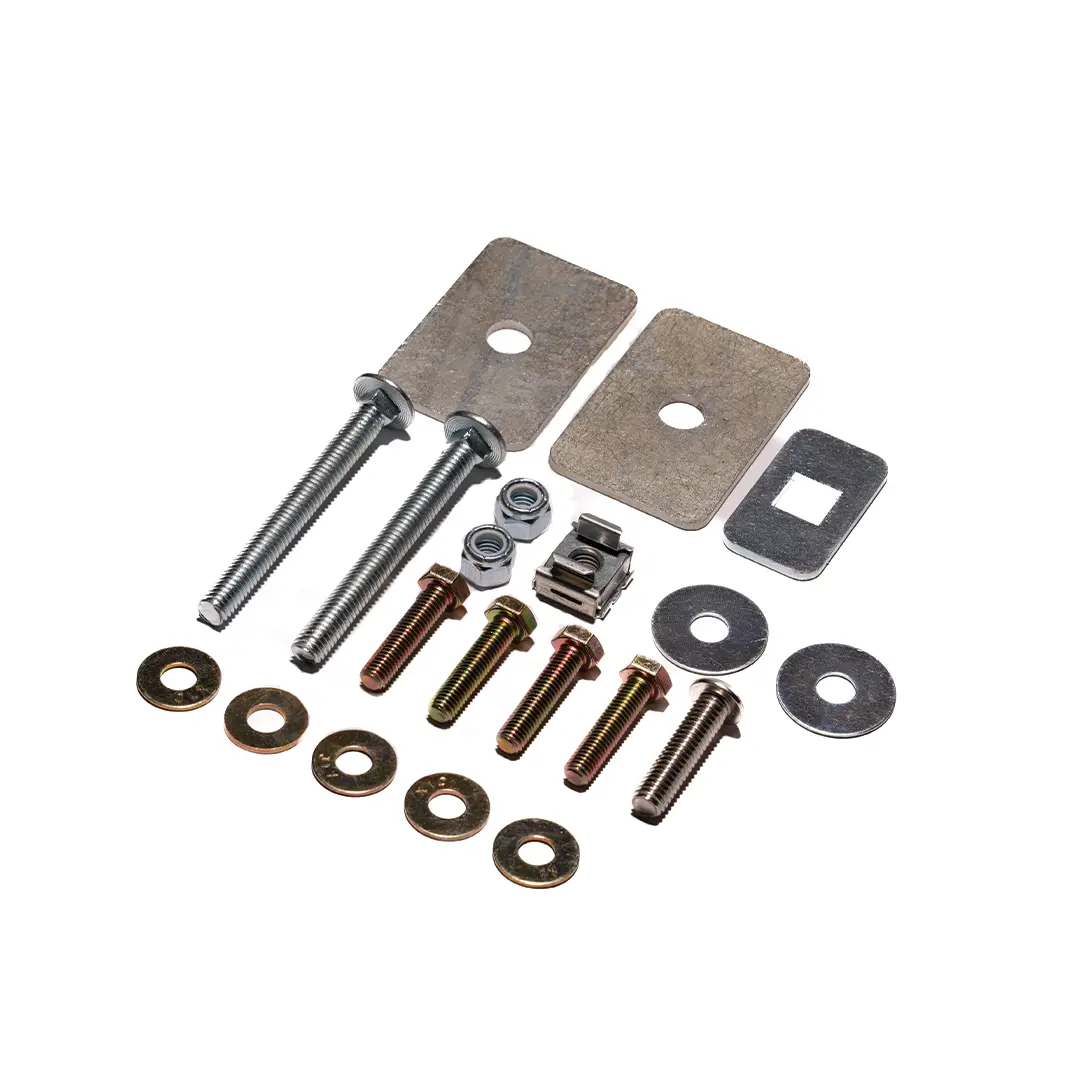

| Hardware | High-Strength Bolts with Protector Rings |
| Finish Options | Raw Metal or Black Powder Coat |
| Installation | 100% Bolt-On (No Drilling) |
| Weight | Steel (~35 lbs) | Aluminum (~19 lbs) |
| Origin | Made in the USA |
Pros & Cons
Pros
- Theft Deterrence — Heavily restricts access to the expensive catalytic converters.
- Bolt Head Security — Protector rings prevent hardware from being sheared or easily unscrewed.
- Optimized Airflow — Precision cutouts ensure the transmission stays cool under load.
- No-Drill Setup — Easy installation that preserves the integrity of your new Tacoma.
Cons
- Weight Penalty — Adding protection means adding weight, especially with the 35lb steel version.
- Maintenance Access — While well-ventilated, the plate must be dropped for certain deep transmission services.
Frequently Asked Questions
Does this work with the 2024 Tacoma Hybrid (i-FORCE MAX)?
Yes. This skid plate is engineered to clear all exhaust and cooling components specific to the 2024 Tacoma Hybrid drivetrain, offering total protection for all trim levels.
Is this enough to stop catalytic converter theft?
While no device is 100% impenetrable, this plate acts as a major physical deterrent. Most thieves look for easy, 30-second targets; a heavy-duty steel plate with bolt protectors makes the job too difficult and time-consuming for most opportunistic criminals.
Can I install this by myself?
Absolutely. Because it uses factory mounting points and includes all hardware, it can be installed with basic hand tools. However, due to the size of the plate, having a second set of hands or a floor jack to hold it in place is recommended.
