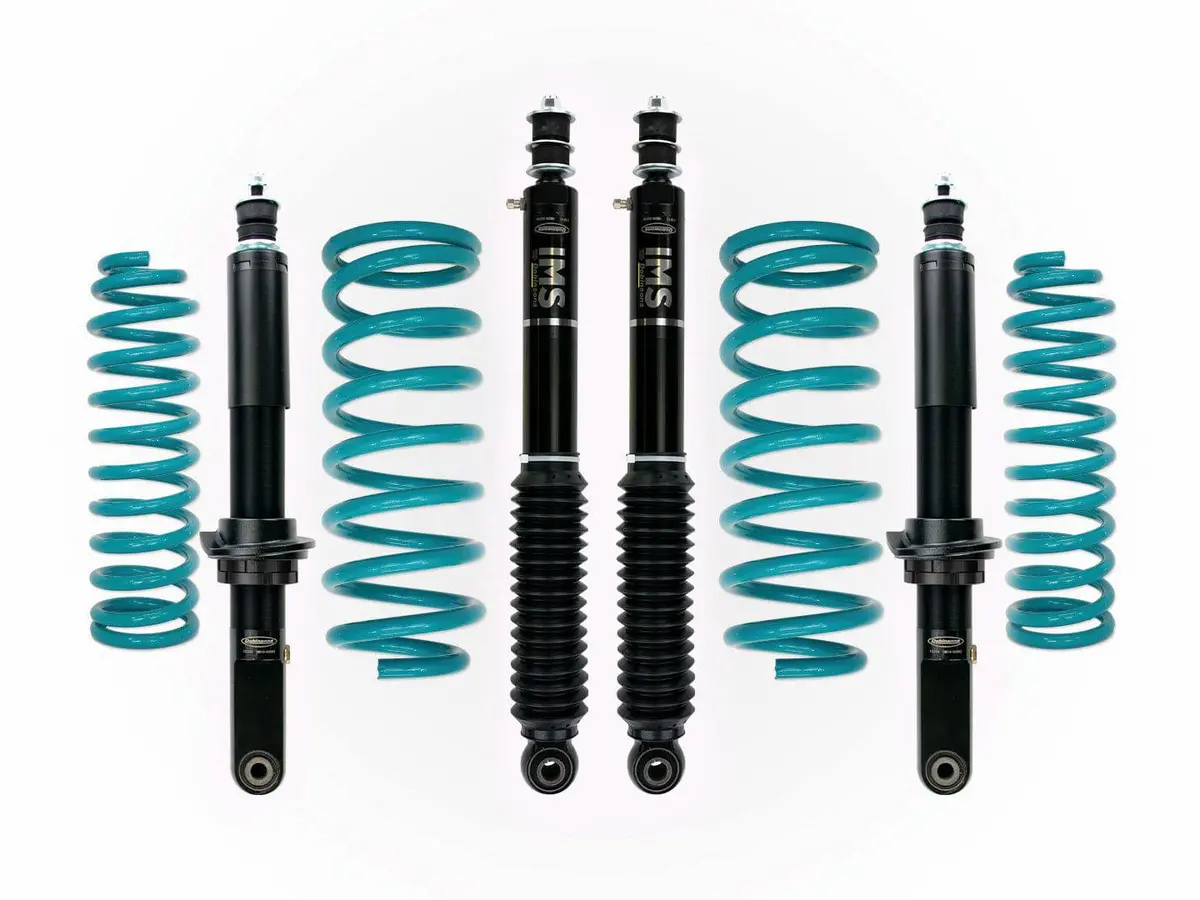

Dobinsons Adjustable 1–3″ Lift Kit for 2024+ Lexus GX550

Description

• Any lift of 2.5″ or more requires diff drop kit and Aftermarket UCA
• Front Coil Spring Specs:
  • C59-816 (50mm – 2″) Stock Load
  • C59-820 (65mm – 2.5″) Stock Load / (50mm- 2″) 110-220lb Load
• Rear Coil Spring Specs: HYBRID (Non-Hybrid will yield slightly taller lift)
  • C59-883V (Stock Height) Stock Load
    C59-885V (12mm – .5″) Stock Load
    C59-817V (50mm – 2″) 0-100lb Load
    C59-819V (50mm – 2″) 200-400lb Load
    C59-821V (50mm – 2″) 500-700lb Load
    C59-823V (50mm – 2″) 800-1000lb Load
    C59-825V (50mm – 2″) 1100-1300lb Load
• Front Strut Specs:
  • MRA59-A660 – 0-2″ Lift
  • MRA59-A440 – 2.5-3″ Lift (Extended Travel)
• WA59-571K – Upper trailing arms – Vehicles with headlight adjuster sensor will require an additional clamp bracket provided by us.

• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression – For creepy crawling and cornering
• 15 Stage Rebound – Control your coils, prevent bucking
• 60mm CNC Machined High Flow Billet Aluminium Race Piston
• 2.6″” Precision Honed Shock Body
• 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
• Upgraded 3 Stage FKM-HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances
• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 Height Adjustable Spring Seat
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design

****Coil seat for MRA59-A660 / MRA59-A440 should be set at 237mm (9.3″) from the strut bushing eye to top of coil isolator****

STRUT ASSEMBLY INSTRUCTIONS
