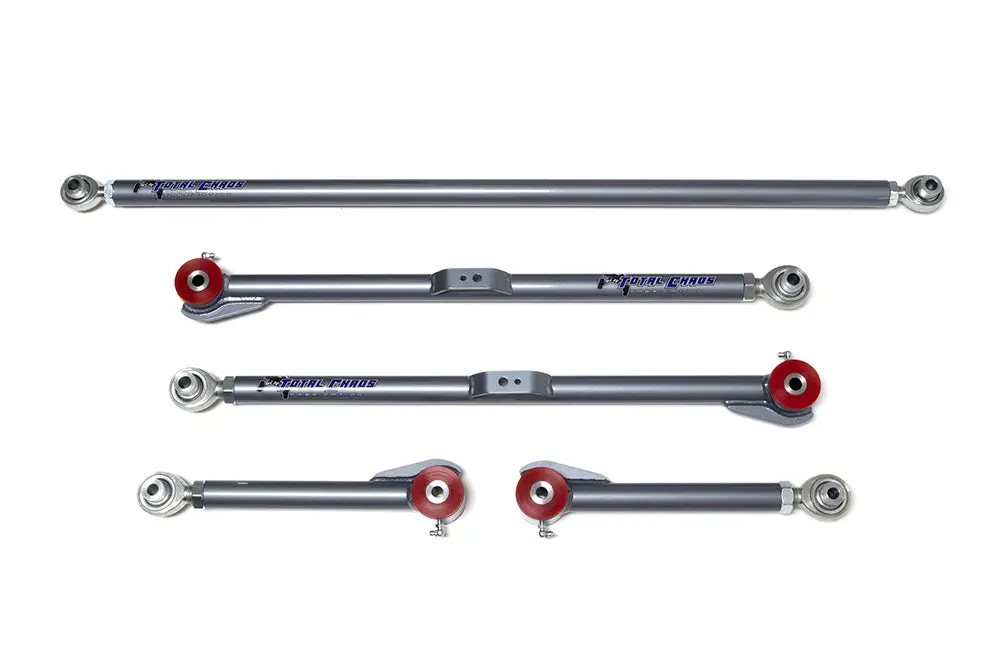

GX460 Adjustable Rear Control Arms for 2010–2023 Models

Description

– 100% bolt on system.
– Pan hard bar includes 3/4″ heims on both ends making it fully adjustable.
– 1.5″ more droop wheel travel over stock links when longer shocks are installed.
– Constructed from 1 1/4″ .375 wall 4130 chromoly tubing for maximum strength.
– Includes urethane pivot bushings and zerk fitting for easy maintenance.
– Hi-misalignment spacers and hardware are included.
– Upper and lower links are designed to incorporate a heim joint on non-axle side making this rear link system adjustable in length. Ships pre-set to factory length.UPPER LINK – QTY: (2)
LOWER LINK – QTY: (2)
PANHARD BAR – QTY: (1)
NUT, 7/8″-14 RHT JAM – QTY: (4)
NUT, 8MM-1.25 FLANGE HEAD NUT – QTY: (2)
NUT, 3/4″-16 RHT JAM – QTY: (2)
HEIM SPACER, UPPER LINK – QTY: (4)
HEIM SPACER, LOWER LINK – QTY: (4)
HEIM SPACER, PANHARD BAR – QTY: (4)
INNER SLEEVE (LARGE HOLE) – QTY: (2)
INNER SLEEVE (SMALL HOLE) – QTY: (2)
UNIVERSAL BUSHING, HALF – QTY: (8)
ZERK FITTING, 1/4″-28 90 DEGREE – QTY: (4)
RHT 7/8″ X 7/8″ HEIM – QTY: (4)
RHT 3/4″ X 3/4″ HEIM – QTY: (2)
Please contact us for any replacement parts.
